RedFlag (Aggregator)

ALPHA RELEASE - v0.1.16 Self-hosted update management platform for homelabs and small teams

Status

• Core Features Working: Update management, agent registration, web dashboard
• Alpha Deployment Ready: Setup wizard and configuration system implemented
• Cross-Platform Support: Linux and Windows agents
• In Development: Enhanced features and polish
• Alpha Software: Expect some rough edges, backup your data

What RedFlag Is

A self-hosted, cross-platform update management platform built for homelabs and small teams:

• Go Server Backend with PostgreSQL database
• React Web Dashboard with real-time updates
• Cross-Platform Agents (Linux APT/DNF/Docker, Windows Updates/Winget)
• Secure Authentication with registration tokens and refresh tokens
• System Monitoring with real-time status and audit trails
• User-Adjustable Rate Limiting with TLS support

Key Features

Alpha Features

• Secure Server Setup: ./redflag-server --setup with user-provided secrets
• Registration Token System: One-time tokens for secure agent enrollment
• Rate Limiting: User-adjustable API security with sensible defaults
• Cross-Platform Agents: Linux and Windows with unified architecture
• Real-Time Heartbeat: Rapid polling for interactive operations
• Dependency Management: Safe update installation with dry-run checking
• Audit Logging: Complete activity tracking and history
• Proxy Support: HTTP/HTTPS/SOCKS5 proxy support for restricted networks

Update Management

• Package Managers: APT, DNF, Docker images, Windows Updates, Winget
• Update Discovery: Automatic scanning with severity classification
• Approval Workflow: Controlled update deployment with confirmation
• Bulk Operations: Multi-agent management and batch operations
• Rollback Support: Failed update tracking and retry capabilities

Deployment

• Configuration Management: CLI flags → environment → config file → defaults
• Service Integration: systemd service management on Linux
• Cross-Platform Installers: One-liner deployment scripts
• Container Support: Docker and Kubernetes deployment options

Architecture

┌─────────────────┐
│  Web Dashboard  │  React + TypeScript + TailwindCSS
│  + Rate Limiting │  + Registration Token Management
└────────┬────────┘
         │ HTTPS with TLS + User Authentication
┌────────▼────────┐
│  Server (Go)    │  Alpha with PostgreSQL
│  + Rate Limits  │  + Registration Tokens + Setup Wizard
│  + JWT Auth     │  + Heartbeat System + Comprehensive API
└────────┬────────┘
         │ Pull-based (agents check in every 5 min) + Rapid Polling
    ┌────┴────┬────────┐
    │         │        │
┌───▼──┐  ┌──▼──┐  ┌──▼───┐
│Linux │  │Windows│  │Linux │
│Agent │  │Agent  │  │Agent │
│+Proxy│  │+Proxy│  │+Proxy│
└──────┘  └───────┘  └──────┘

Prerequisites

• Go 1.21+ (for building from source)
• Docker & Docker Compose (for PostgreSQL database)
• Linux (server deployment platform)

Quick Start

1. Server Setup (Linux)

# Clone and build
git clone https://github.com/Fimeg/RedFlag.git
cd RedFlag

# Option 1: Use Makefile (recommended)
make build-all

# Option 2: Manual build
cd aggregator-server && go mod tidy && go build -o redflag-server cmd/server/main.go
cd ../aggregator-agent && go mod tidy && go build -o redflag-agent cmd/agent/main.go

# Interactive setup wizard
sudo ./redflag-server --setup
# Follow prompts for:
# - Admin credentials
# - Database configuration
# - Server settings
# - Agent seat limits

# Start database
docker-compose up -d postgres

# Run migrations
./redflag-server --migrate

# Start server
./redflag-server
# Server: http://redflag.wiuf.net:8080
# Dashboard: http://redflag.wiuf.net:8080

2. Agent Deployment (Linux)

# Option 1: One-liner with registration token
sudo bash -c 'curl -sfL https://redflag.wiuf.net/install | bash -s -- rf-tok-abc123'

# Option 2: Manual installation
sudo ./install.sh --server https://redflag.wiuf.net:8080 --token rf-tok-abc123

# Option 3: Advanced configuration with proxy
sudo ./redflag-agent --server https://redflag.wiuf.net:8080 \
                      --token rf-tok-abc123 \
                      --proxy-http http://proxy.company.com:8080 \
                      --organization "my-homelab" \
                      --tags "production,webserver"

3. Windows Agent Deployment

# PowerShell one-liner
iwr https://redflag.wiuf.net/install.ps1 | iex -Arguments '--server https://redflag.wiuf.net:8080 --token rf-tok-abc123'

# Or manual download and install
.\redflag-agent.exe --server https://redflag.wiuf.net:8080 --token rf-tok-abc123

Agent Configuration Options

CLI Flags (Highest Priority)

./redflag-agent --server https://redflag.wiuf.net \
                --token rf-tok-abc123 \
                --proxy-http http://proxy.company.com:8080 \
                --proxy-https https://proxy.company.com:8080 \
                --log-level debug \
                --organization "my-homelab" \
                --tags "production,webserver" \
                --name "redflag-server-01" \
                --insecure-tls

Environment Variables

export REDFLAG_SERVER_URL="https://redflag.wiuf.net"
export REDFLAG_REGISTRATION_TOKEN="rf-tok-abc123"
export REDFLAG_HTTP_PROXY="http://proxy.company.com:8080"
export REDFLAG_HTTPS_PROXY="https://proxy.company.com:8080"
export REDFLAG_NO_PROXY="localhost,127.0.0.1"
export REDFLAG_LOG_LEVEL="info"
export REDFLAG_ORGANIZATION="my-homelab"

Configuration File

{
  "server_url": "https://redflag.wiuf.net",
  "registration_token": "rf-tok-abc123",
  "proxy": {
    "enabled": true,
    "http": "http://proxy.company.com:8080",
    "https": "https://proxy.company.com:8080",
    "no_proxy": "localhost,127.0.0.1"
  },
  "network": {
    "timeout": "30s",
    "retry_count": 3,
    "retry_delay": "5s"
  },
  "logging": {
    "level": "info",
    "max_size": 100,
    "max_backups": 3
  },
  "tags": ["production", "webserver"],
  "organization": "my-homelab",
  "display_name": "redflag-server-01"
}

Web Dashboard Features

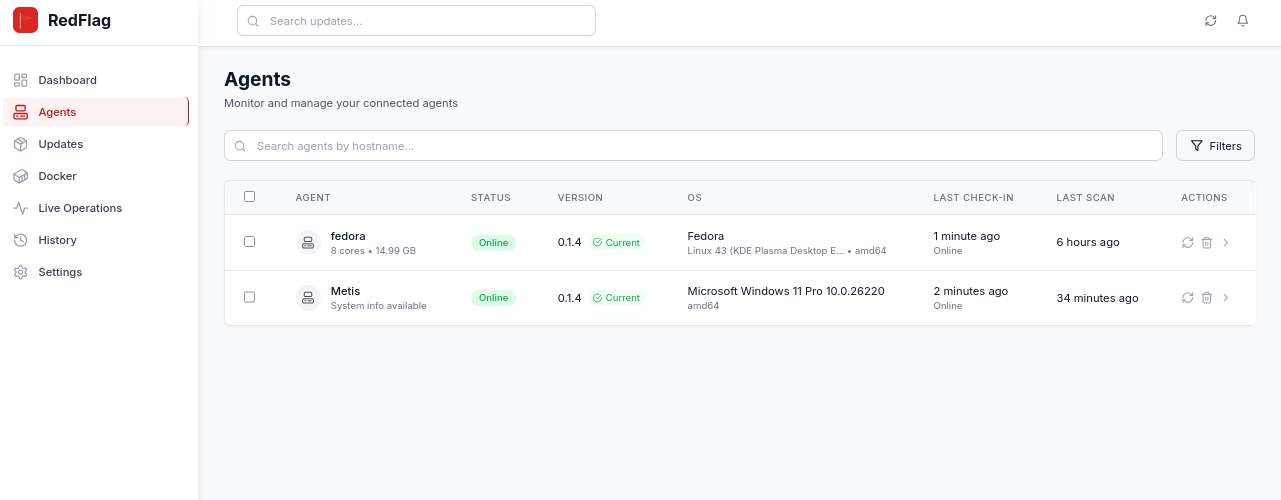

Agent Management

• Real-time Status: Online/offline with heartbeat indicators
• System Information: CPU, memory, disk usage, OS details
• Version Tracking: Agent versions and update availability
• Metadata Management: Tags, organizations, display names
• Bulk Operations: Multi-agent scanning and updates

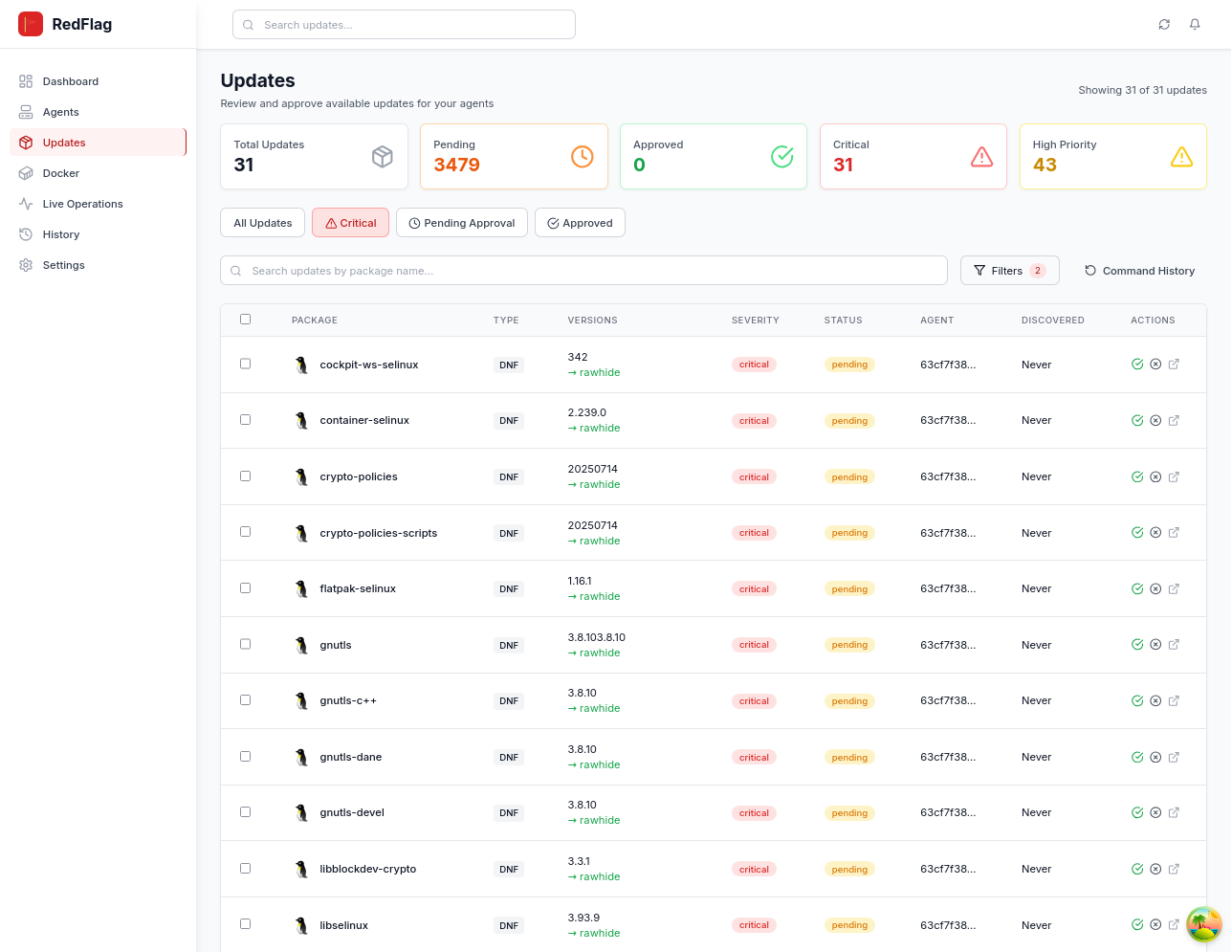

Update Management

• Severity Classification: Critical, high, medium, low priority updates
• Approval Workflow: Controlled update deployment with dependencies
• Dependency Resolution: Safe installation with conflict checking
• Batch Operations: Approve/install multiple updates

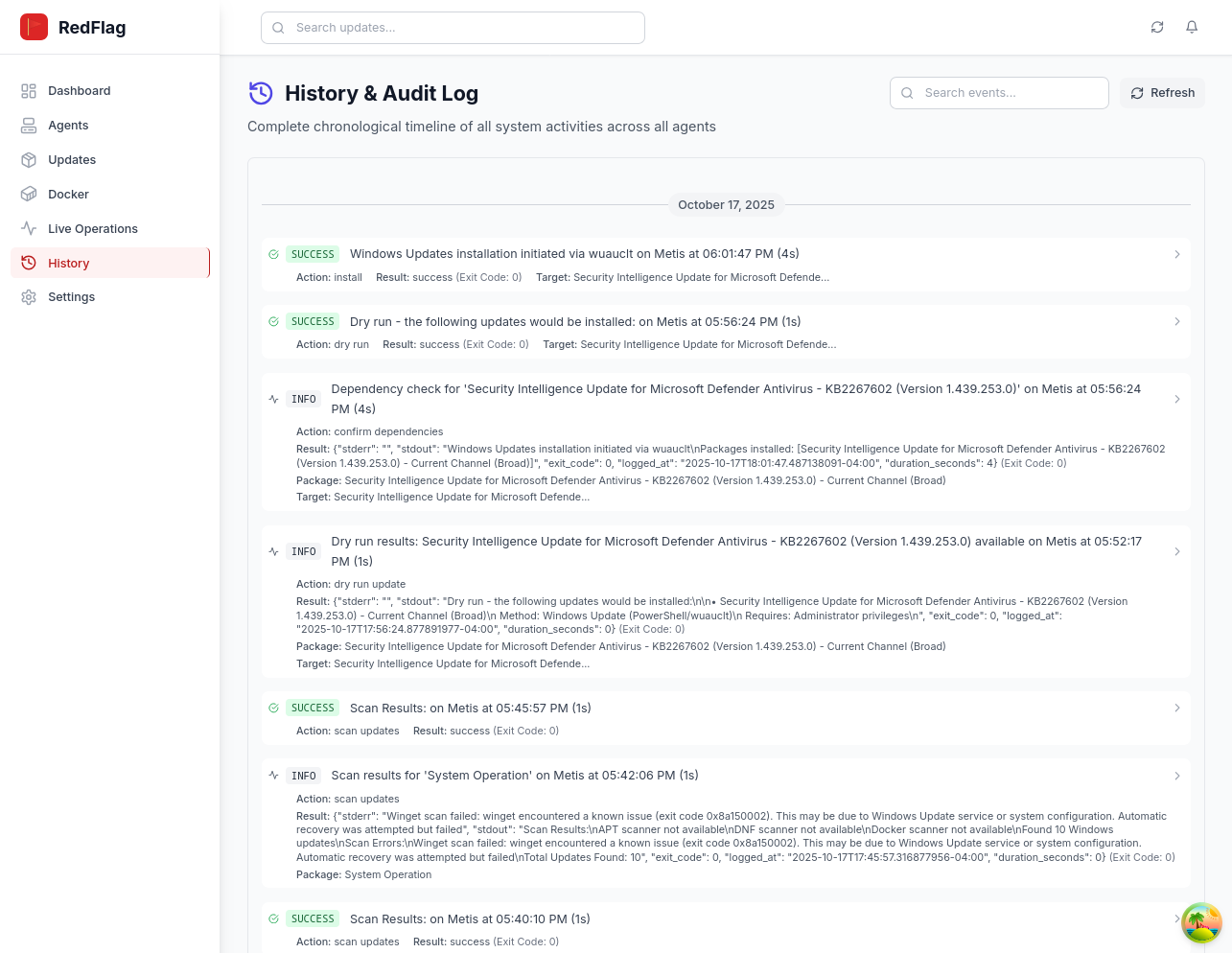

• Audit Trail: Complete history of all operations

Settings & Administration

• Registration Tokens: Generate and manage secure enrollment tokens
• Rate Limiting: User-adjustable API security settings
• Authentication: Secure login with session management
• Audit Logging: Comprehensive activity tracking
• Server Configuration: Admin settings and system controls

API Reference

Registration Token Management

# Generate registration token
curl -X POST https://redflag.wiuf.net/api/v1/admin/registration-tokens \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -d '{"label": "Production Servers", "expires_in": "24h"}'

# List tokens
curl -X GET https://redflag.wiuf.net/api/v1/admin/registration-tokens \
  -H "Authorization: Bearer $ADMIN_TOKEN"

# Revoke token
curl -X DELETE https://redflag.wiuf.net/api/v1/admin/registration-tokens/rf-tok-abc123 \
  -H "Authorization: Bearer $ADMIN_TOKEN"

Rate Limit Management

# View current settings
curl -X GET https://redflag.wiuf.net/api/v1/admin/rate-limits \
  -H "Authorization: Bearer $ADMIN_TOKEN"

# Update settings
curl -X PUT https://redflag.wiuf.net/api/v1/admin/rate-limits \
  -H "Authorization: Bearer $ADMIN_TOKEN" \
  -d '{
    "agent_registration": {"requests": 10, "window": "1m", "enabled": true},
    "admin_operations": {"requests": 200, "window": "1m", "enabled": true}
  }'

Security

Authentication & Authorization

• Registration Tokens: One-time use tokens prevent unauthorized agent enrollment
• Refresh Token Authentication: 90-day sliding window with 24h access tokens
• SHA-256 token hashing for secure storage
• Admin authentication for server access and management

Network Security

• Rate Limiting: Configurable API protection with sensible defaults
• TLS Support: Certificate validation and client certificate support
• Pull-based Model: Agents poll server (firewall-friendly)
• HTTPS Required: Production deployments must use TLS

System Hardening

• Minimal Privilege Execution: Agents run with least required privileges
• Command Validation: Whitelisted commands only
• Secure Defaults: Hardened configurations out of the box
• Security Hardening: Minimal privilege execution and sudoers management

Audit & Monitoring

• Audit Trails: Complete logging of all activities
• Token Renewal: /renew endpoint prevents daily re-registration
• Activity Tracking: Comprehensive monitoring and alerting
• Access Logs: Full audit trail of user and agent actions

Docker Deployment

# docker-compose.yml
version: '3.8'
services:
  redflag-server:
    build: ./aggregator-server
    ports:
      - "8080:8080"
    environment:
      - REDFLAG_SERVER_HOST=0.0.0.0
      - REDFLAG_SERVER_PORT=8080
      - REDFLAG_DB_HOST=postgres
      - REDFLAG_DB_PORT=5432
      - REDFLAG_DB_NAME=redflag
      - REDFLAG_DB_USER=redflag
      - REDFLAG_DB_PASSWORD=secure-password
    depends_on:
      - postgres
    volumes:
      - ./redflag-data:/etc/redflag
      - ./logs:/app/logs

  postgres:
    image: postgres:15
    environment:
      POSTGRES_DB: redflag
      POSTGRES_USER: redflag
      POSTGRES_PASSWORD: secure-password
    volumes:
      - postgres-data:/var/lib/postgresql/data
    ports:
      - "5432:5432"

Project Structure

RedFlag/
├── aggregator-server/          # Go server backend
│   ├── cmd/server/            # Main server entry point
│   ├── internal/
│   │   ├── api/               # REST API handlers and middleware
│   │   │   └── handlers/       # API endpoint implementations
│   │   ├── database/          # Database layer with migrations
│   │   │   ├── migrations/     # Database schema migrations
│   │   │   └── queries/        # Database query functions
│   │   ├── models/            # Data models and structs
│   │   ├── services/          # Business logic services
│   │   └── config/            # Configuration management
│   └── redflag-server          # Server binary

├── aggregator-agent/           # Cross-platform Go agent
│   ├── cmd/agent/             # Agent main entry point
│   ├── internal/
│   │   ├── client/           # HTTP client with token renewal
│   │   ├── config/           # Enhanced configuration system
│   │   ├── scanner/          # Update scanners for each platform
│   │   ├── installer/        # Package installers
│   │   └── system/           # System information collection
│   ├── install.sh             # Linux installation script
│   └── redflag-agent           # Agent binary

├── aggregator-web/             # React dashboard
├── docker-compose.yml          # Development environment
├── Makefile                    # Common tasks
└── README.md                   # This file

What This Is

A self-hosted, cross-platform update management platform built with:

• Go server backend + PostgreSQL
• React web dashboard with TypeScript
• Cross-platform agents (Linux APT/DNF/Docker, Windows Updates/Winget)
• Local CLI tools for agent management
• Update installation system with dependency management
• Refresh token authentication for stable agent identity

What This Isn't

• Not ready for public use
• Not documented for external users
• Not supported or maintained for others
• Not stable (active development)

Current Capabilities

Working Features

• Server backend with REST API
• Cross-platform agent registration and check-in
• Update discovery for APT, DNF, Docker images, Windows Updates, and Winget packages
• Update approval workflow with dependency confirmation
• Web dashboard with agent management and real-time status
• Local CLI tools (--scan, --status, --list-updates, --export, --export=json/csv)
• Update installation system with dry-run dependency checking
• Beautiful terminal output with colors and severity indicators
• Local cache system for offline viewing of scan results
• Refresh token authentication for stable agent identity
• Event-sourced database architecture for scalability

Known Limitations

• No real-time WebSocket updates
• Proxmox integration is not implemented in this version (planned for future release)
• Authentication system works but needs security hardening

Screenshots

Overview	Updates Management	Agent List
System overview with metrics	Update approval with dependency workflow	Cross-platform agent management

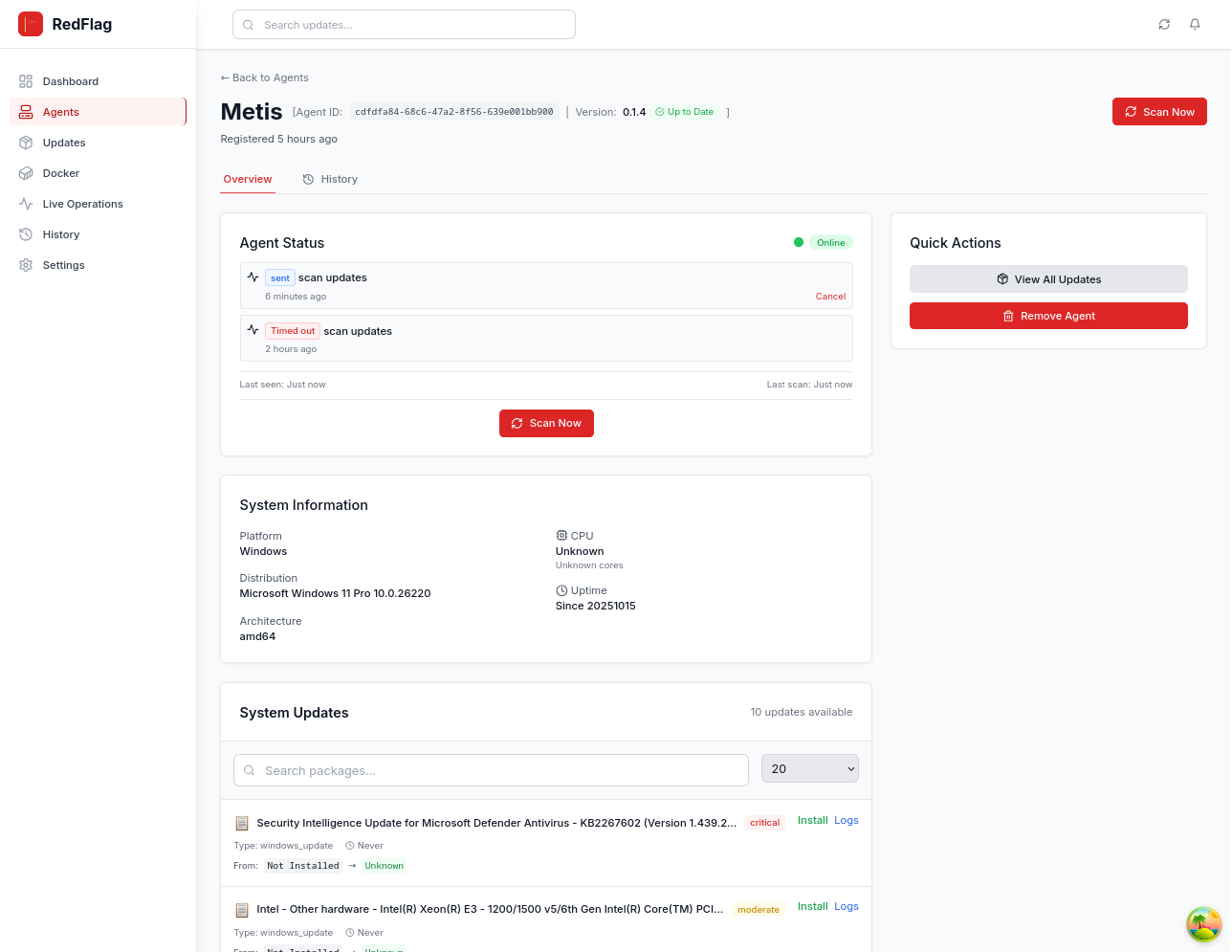

Linux Agent Details	Windows Agent Details
Linux system specs and updates	Windows Updates and Winget support

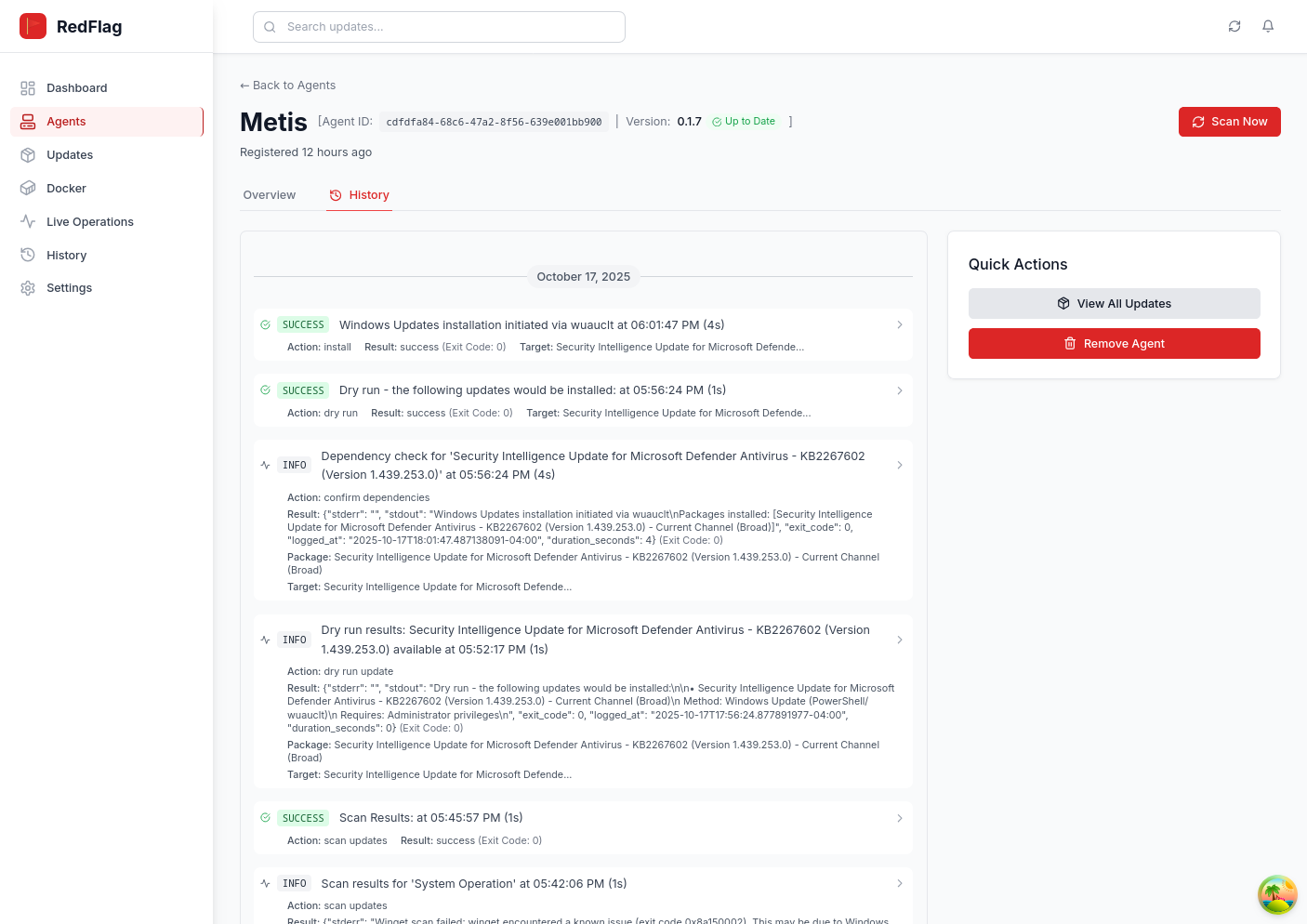

History & Audit	Windows Agent History
Complete audit trail of activities	Windows agent activity timeline

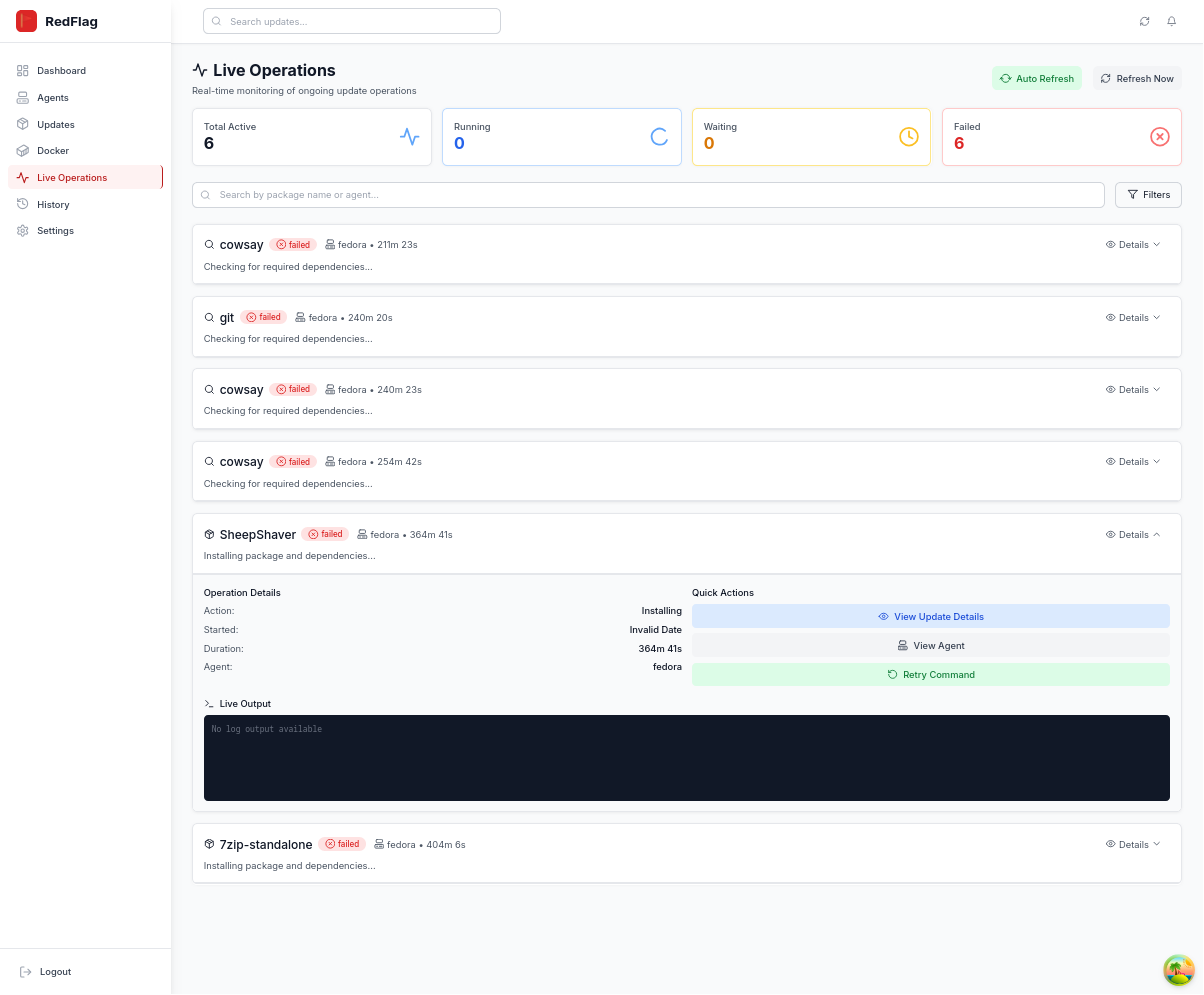

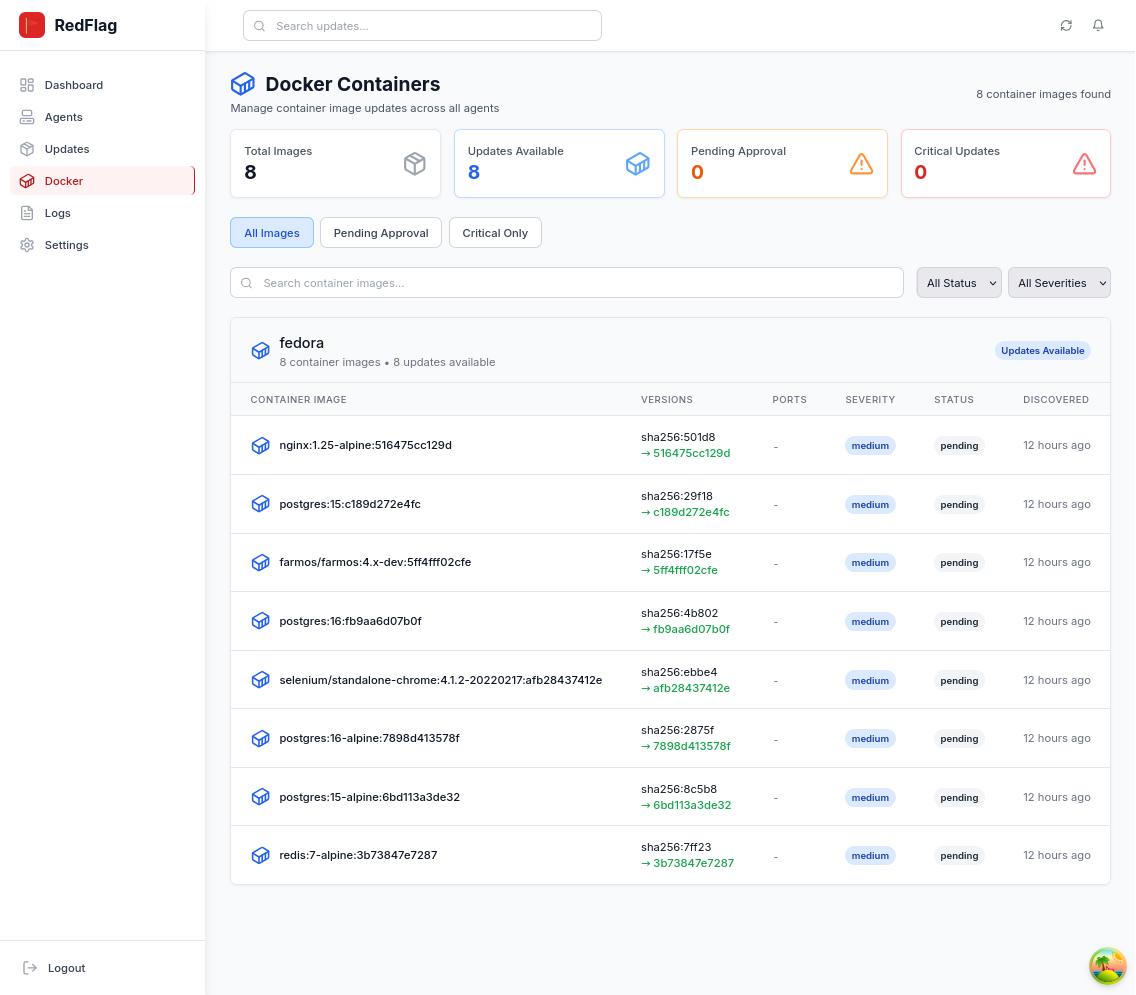

Live Operations	Docker Management
Real-time operation tracking	Container image update management

For Developers

This repository contains:

• Server backend code (aggregator-server/)
• Agent code (aggregator-agent/)
• Web dashboard (aggregator-web/)
• Database migrations and configuration

Database Schema

Key Tables:

• agents - Registered agents with system metadata and version tracking
• refresh_tokens - Long-lived refresh tokens for stable agent identity
• update_events - Immutable event storage for update discoveries
• current_package_state - Optimized view of current update state
• agent_commands - Command queue for agents (scan, install, dry-run)
• update_logs - Execution logs with detailed results
• agent_tags - Agent tagging/grouping

Configuration

Server (.env)

SERVER_PORT=8080
DATABASE_URL=postgres://aggregator:aggregator@localhost:5432/aggregator?sslmode=disable
JWT_SECRET=change-me-in-production
CHECK_IN_INTERVAL=300    # seconds
OFFLINE_THRESHOLD=600    # seconds

Agent (/etc/aggregator/config.json)

Auto-generated on registration:

{
  "server_url": "http://localhost:8080",
  "agent_id": "uuid",
  "token": "jwt-access-token",
  "refresh_token": "long-lived-refresh-token",
  "check_in_interval": 300
}

Development

Makefile Commands

make help           # Show all commands
make db-up          # Start PostgreSQL
make db-down        # Stop PostgreSQL
make server         # Run server (with auto-reload)
make agent          # Run agent
make build-server   # Build server binary
make build-agent    # Build agent binary
make test           # Run tests
make clean          # Clean build artifacts

Running Tests

cd aggregator-server && go test ./...
cd aggregator-agent && go test ./...

API Usage

List All Agents

curl http://localhost:8080/api/v1/agents

Trigger Update Scan

curl -X POST http://localhost:8080/api/v1/agents/{agent-id}/scan

List All Updates

# All updates
curl http://localhost:8080/api/v1/updates

# Filter by severity
curl http://localhost:8080/api/v1/updates?severity=critical

# Filter by status
curl http://localhost:8080/api/v1/updates?status=pending

Approve an Update

curl -X POST http://localhost:8080/api/v1/updates/{update-id}/approve

Token Renewal (Agent Authentication)

# Exchange refresh token for new access token
curl -X POST http://localhost:8080/api/v1/agents/renew \
  -H "Content-Type: application/json" \
  -d '{
    "agent_id": "uuid",
    "refresh_token": "long-lived-token"
  }'

Dependency Workflow

# Dry run to check dependencies (automatically triggered by install)
curl -X POST http://localhost:8080/api/v1/updates/{update-id}/approve

# Confirm dependencies and install
curl -X POST http://localhost:8080/api/v1/updates/{update-id}/confirm-dependencies

License

MIT License - see LICENSE file for details.

This is private development software. Use at your own risk.

Third-Party Licenses

Windows Update Package (Apache 2.0)

This project includes a modified version of the windowsupdate package from https://github.com/ceshihao/windowsupdate

Copyright 2022 Zheng Dayu Licensed under the Apache License, Version 2.0 Original package: https://github.com/ceshihao/windowsupdate

The package is included in aggregator-agent/pkg/windowsupdate/ and has been modified for integration with RedFlag's update management system.
